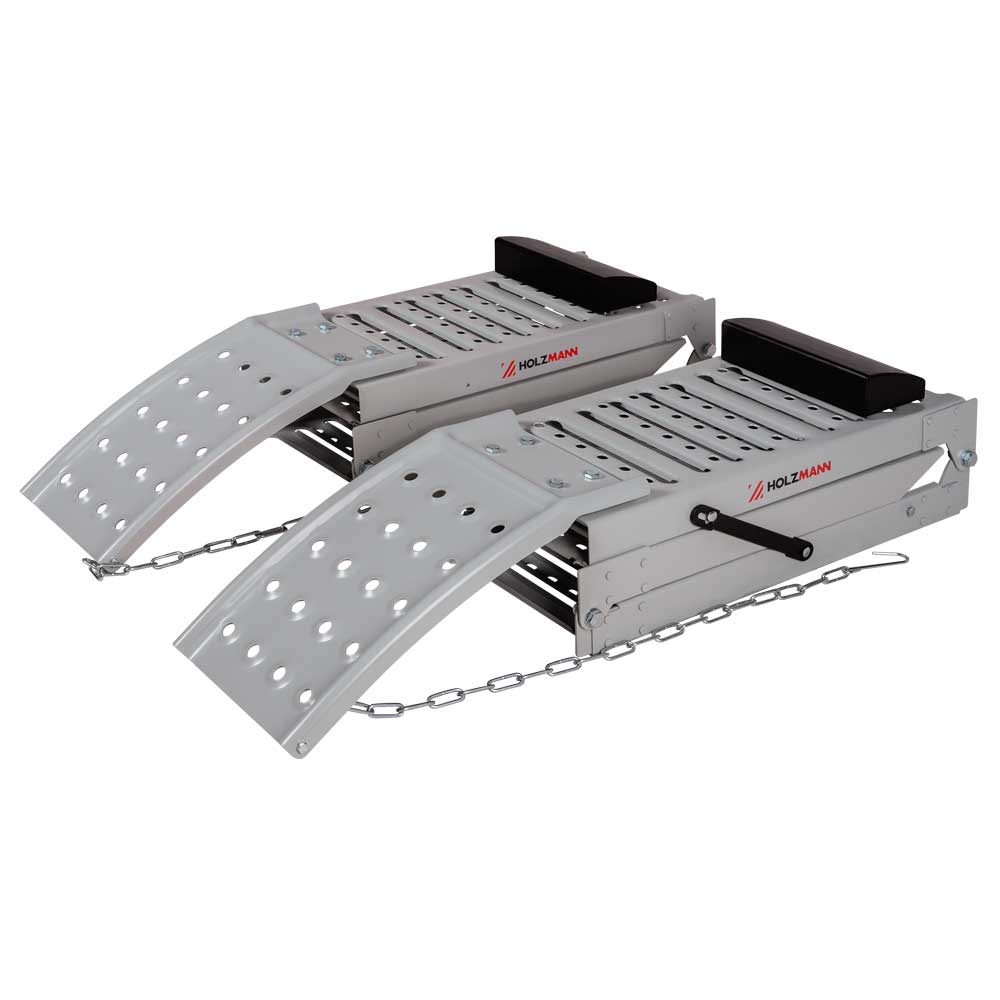

PAIR TRI FOLD RAMP RAMP23T

This pair of ramps makes it easier to load smaller machines onto a trailer, van, etc. Allows double use, folded with a maximum load of 2300 kg, unfolded with a maximum load of 460 kg. Use it for loading products such as: Mini dumpers, lawnmowers, quad bikes, This loading ramp offers a width of 225 mm for loading products with slightly wider wheels.

• max. load folded
• 1150 kg per ramp / 2300 kg per pair
• max. load unfolded
• 230 kg per ramp / 460 kg per pair
• max. tire width 225 mm
• max. slope 17°
• material powder coating finished steel
• product dimensions folded (L×W×H) 900×250×150 mm
• product dimensions un-folded (L×W×H) 1930×250×50 mm
