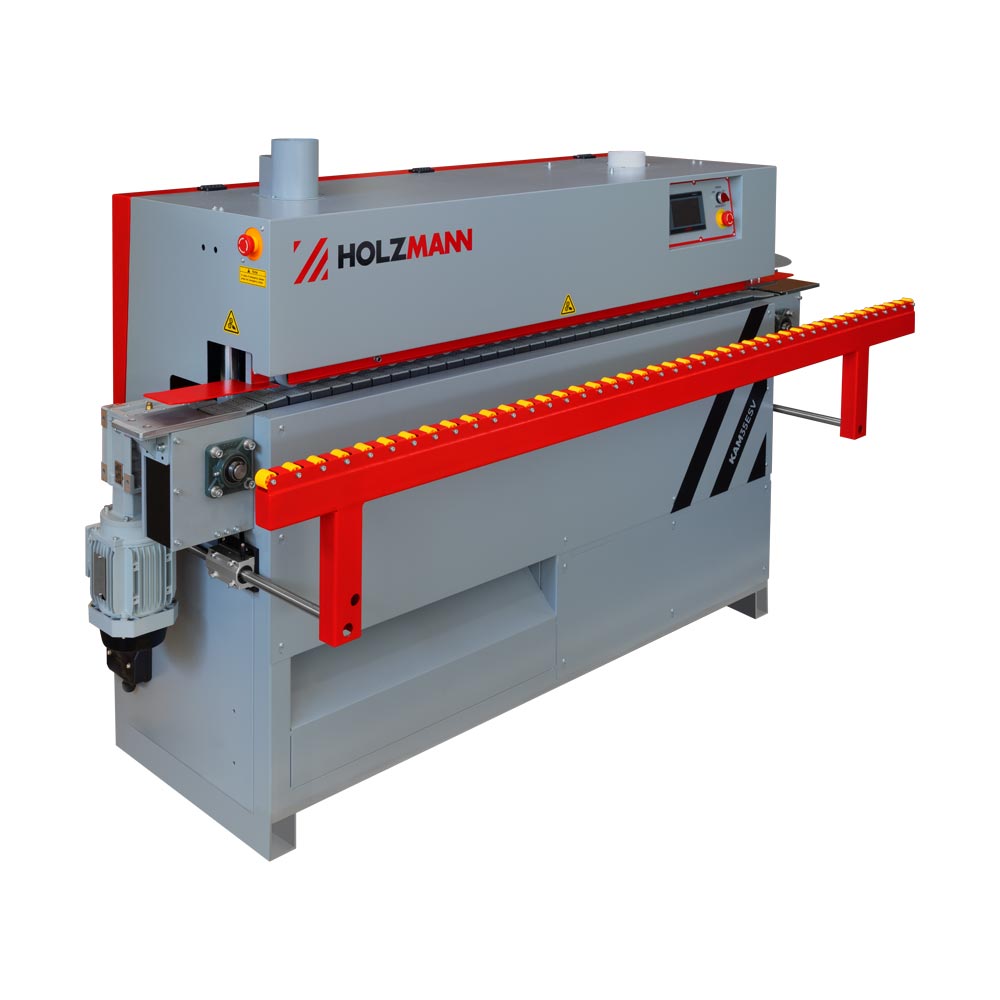

edge banding machine KAM35ESV_400V
HOLZMANN KAM35ESV_400V edge banding machine – Efficient edge processing in a compact machine size The KAM35ESV_400V from the HOLZMANN KAM35 series is the ideal solution for precise and economical gluing of glue edges – perfectly suited for small to medium-sized businesses. Equipped with a pre-milling unit for perfect edge preparation, a glue application system for clean and even gluing, edge pressing and cutting for precise ends, and a milling and scraping unit for precise finishing. Note: This model does not have a polishing unit. Thanks to its compact design, the machine takes up very little space in the workshop, yet delivers professional, industrial-grade results. The wide range of models in the KAM35 series allows you to choose exactly the right machine for your business needs.
- touchscreen display
- one-sided automatic edge banding machine with
- pre-milling unit (double cutter left/right rotation) with ø80 mm cutter equipped; 1,1kW motor per unit and 12000min-1 cutter speed
- glue tank with heating control and direct glue delivery to straight workpieces
- crosscut saw unit for cutting the edge band (one unit for front and rear side) 0,37kW motor and 12000min-1 (saw blade speed)
- double trimming unit for trimming the edge overhang on the workpiece (top/bottom) ; 0,35KW motor per unit and 12000min-1
- straight scraper unit (top/bottom side)
- automatic and constant panel feed thanks to chain conveyor drive and powerful motor
- gluing temperature can be set electronically on the touch display
- edge band support table
Included in delivery: 2x pre-milling cutters (ø80xø20x55 mm), 2x saw blade (ø104xø22x3),4 x straight scraper, 2x cutters for double milling unit
