5 operation combined machine K5260PSMW2_230V

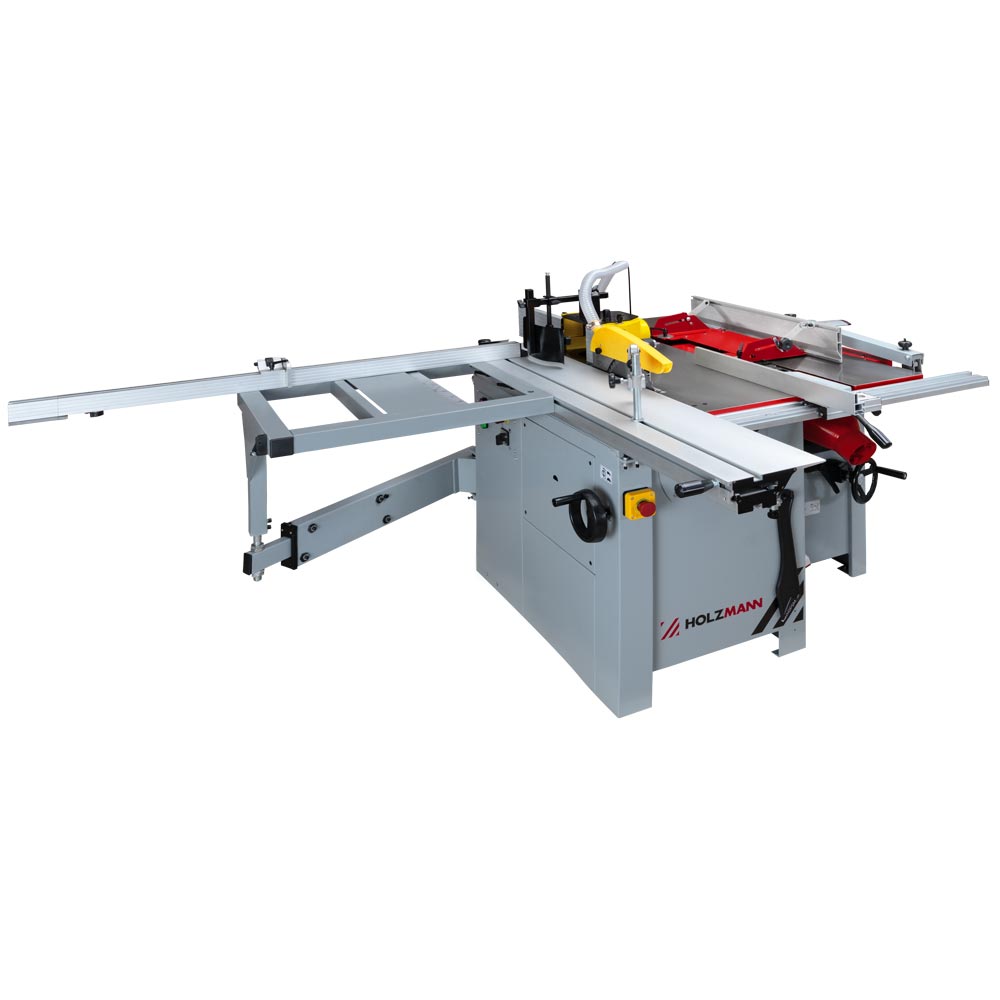

HOLZMANN K5260PSMW2_230V – Combination woodworking machine for various woodworking applications with spiral cutter head The HOLZMANN K5260PSMW2_230V is a combination woodworking machine designed for various woodworking applications. Multiple machining functions are combined in one machine, allowing use in workshops with limited space. The machine combines the following functions: Circular saw Spindle moulder planer with spiral cutterhead Thicknesser planer mortising unit (optional) The sliding table supports the machining of larger workpieces. The machine is equipped with three separately motors for the individual machining units. The optional HOB310ECOLL slot mortising attachment can be added to extend the range of applications.
- saw blade can be swiveled up to 45° using a hand wheel
- spiral cutter shaft for planing and thicknessing with 2 grooves and 24 cutting plates
- sliding table with extension table and crosscut fence (1225-2100 mm)
- function selection via rotary switch
- spindle shaper motor power 1.5 kW
- circular saw motor power 2.2 kW
- planer-thickness planer motor power 2.2 kW
- thickness planer with activating/deactivation feed-lever: feed-speed max. 7 m/min
Included in delivery: TCT saw blade (254 x 30 x 3.0/2.2 mm), dust collector hose (saw blade dust hood to connection piece), 24 x cutter inserts pre-assembled (15x15x2.5-R150 mm)
optional accessories: moving device UFEK5, mortising unit HOB310ECOLL
