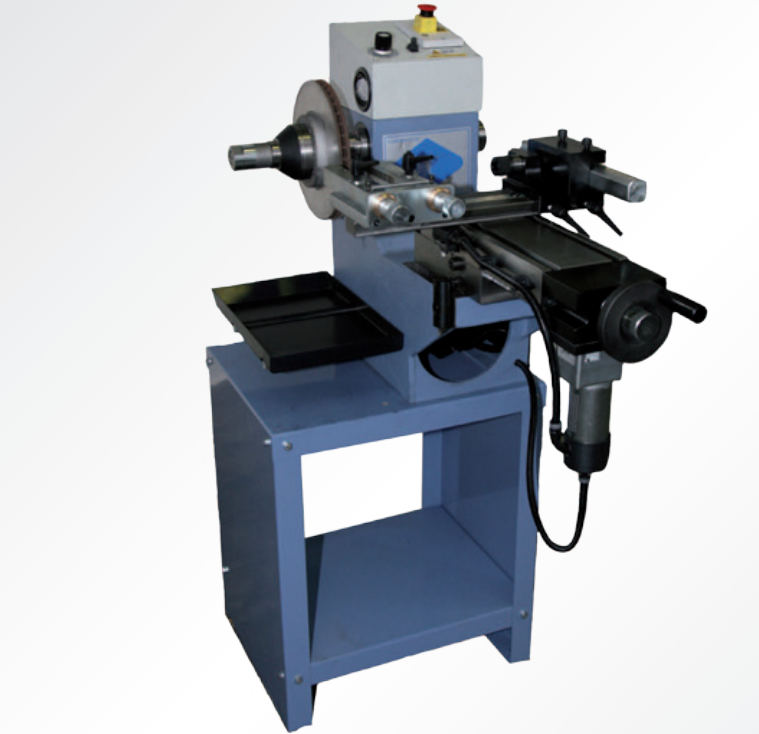

Brake disc and drum lathe, TR470, DYNASTAT

TECHNICAL SPECIFICATIONS:
Min - Max drum capacity: 150 - 710 mm;
Maximum drum depth: 210 mm;
Maximum disc diameter: 860 mm;
Maximum disc depth: 150 mm;
Maximum disc thickness: 60 mm;
Spindle speed: 70-100-145 g/min;
Variable table feed speed: 0.27 mm/min;
Spindle motor:| 0.75 kW;
Dimensions (LxWxH): 840x505x510 mm;
Weight: 205 kg;

The monolithic cast iron frame has high mechanical properties, ensuring excellent strength and stiffness properties. A convenient combined disc/drum tool holder assembly eliminates the need to constantly change the tool holder every time it is switched from disc to drum and vice versa. Cross slide feed with variable speed. Adjustable spindle speed with 3 positions to always have the right cutting speed for the diameter of the workpiece.

KIT:
Combination Disc/Drum Tool Holder Assembly
A drum tool holder is included
A tool holder for discs is included
Ø 30 mm shaft with nut
Gaskets (4 pcs.)
Centering cones (8 pcs.)
Fixing bells (4 pcs.)
Spring
Drum silencer tape
Wrench set
Instruction manual

ADDITIONALLY:
VPS18 - Adapter set for discs and drums - Ø 18 mm arbor
APS50 - Adapter set for heavy discs and drums - Ø 50 mm
