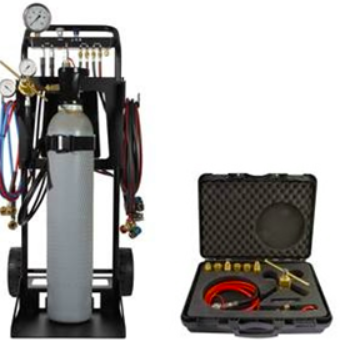

Forming gas trolley kit, TEXA, S0755K
Technical specifications:
Dimensions: 1180x590x668 mm; Weight: 24.5 kg
Weight: 24.5 kg
Suitable for A/C systems: R134a, R1234yf, R744
Forming Gas tanks* supported up to 20 L
Maximum pressure: 20 bar for R134a and R1234yf; 100 bar for R744
Equipped with safety valve that opens completely in case the operating value is reached
Manometer 100 bar, 100 mm CL1
Service hoses:
R134a (LP/HP) 3 m;
R1234yf (LP/HP) 2.5 m;
R744 (LP/HP) 2.5 m;
Forming Gas tank 2.5 m
Forming Gas tank pressure reducer: input operating pressure max 300 bar; output pressure max 100 bar
Safety belt to secure the tank to the cart
Forming Gas case (can also be sold separately)
* Forming Gas tank not included
