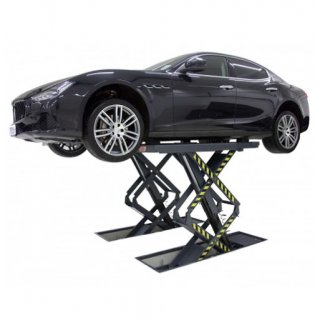

[RAV509IF] Electro-hydraulic scissor lift, RAV509IF, RAVAGLIOLI

Electro-hydraulic in-floor scissor lift with self-lubricating bushings. During each landing, the level of the platforms is perfectly adjusted with a patented leveling device. Due to its design, the lift takes up little space.

Carrying capacity: 3.5 T;
Lifting height: 1825 mm;
Ramp length: 1580 mm;
Width of ramps: 510 mm;
Lifting/lowering time: 41 s;
Engine power: 2.6 kW;
Power supply: 230/400 V | 50 Hz;
Lift length: 1610 mm;
Lift width: 1920 mm;
Weight: 815 kg;
Warranty: 12 months
