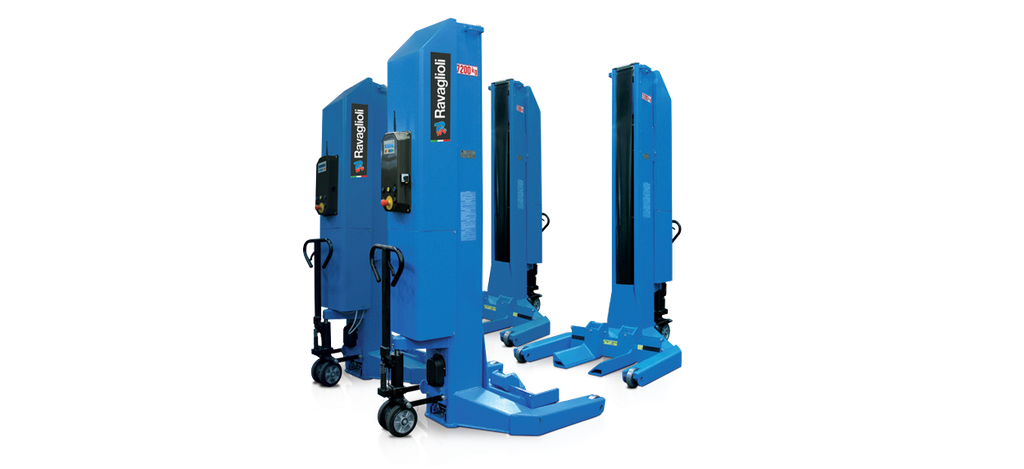

Electro-hydraulic 4-mobile column lift 4 x 5.5 T, RAV305H.4WS, RAVAGLIOLI

The mobile column lift is a versatile solution for lifting various vehicles, ensuring easy access to the vehicle and allowing for effortless tire and brake maintenance. Dual overload protection and a mechanical locking system guarantee maximum safety. The lift operates using a wireless 2.4 GHz connection between columns with automatic channel selection and display indication. Its intuitive controls make operation simple, while the built-in control panel on each column provides added convenience during use. The lift runs on rechargeable batteries.
Technical Specifications:
Column communication: Wireless
Number of lifting units: 4
Lifting capacity: 22,000 kg
Lifting capacity per column: 5,500 kg
Lifting height: 1,761 mm
Lifting time: 120 s
Lowering time: 45 s
Minimum wheel diameter: 500 mm
Maximum wheel diameter: 1,200 mm
Motor power per cylinder: 0.8 kW
Weight per column: 600 kg
Surface coating: Powder-coated
Dimensions: Width: 1,107 mm, Depth: 1,215 mm, Height: 2,692 mm
Space requirement (width): 1,200 mm
Space requirement (height): 3,775 mm
