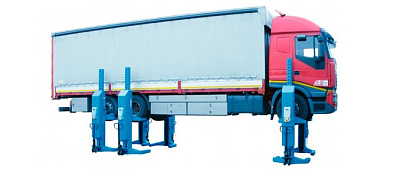

Electrohydraulic Mobile column lift 6 x 7,5 T, RAV297H.6, RAVAGLIOLI

Technical Specifications:
Lifting capacity per column: 7500 kg
Maximum wheel diameter: 1200 mm
Minimum wheel diameter: 500 mm
Lifting time: 136 s
Motor power: 2.6 kW
Distance between lifting points: 576 – 840 mm
Lifting height: 1815 mm
Column height: 2451 mm (3875 mm)
Features:
Electro-hydraulic control system
Each column is portable and equipped with wheels
Weight of control columns: 570 kg (set of 2)
Weight of secondary columns: 550 kg (set of 4)
Total lifting capacity: 45000 kg
Required power supply: 5.5 kW – 16.5 A / 5.5 kW – 9.5 A
Made in Italy
