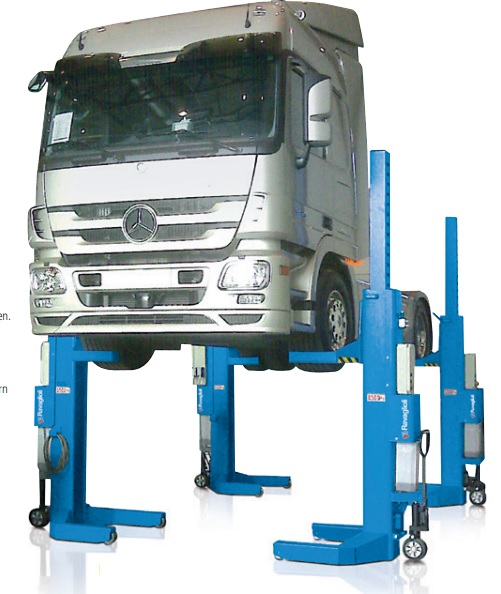

Electro-Hydraulic mobile column lift, RAV297H.4, RAVAGLIOLI

Possibility to connect two or four additional columns
Electro-hydraulic control
Each column is mobile – equipped with wheels, connected by cables
Total lifting capacity: 30,000 kg (4×7,500 kg)
Required power supply per column: 5.5 kW, 9.5 A, 400V/50Hz
Suitable for wheels with a diameter from 500 mm to 1200 mm
Vehicle height locking system
Technical Specifications:
Lifting Capacity per Column: 7.5T
Maximum Wheel Diameter: 1200 mm
Minimum Wheel Diameter: 580 mm
Motor Power: 2.6 kW
Distance Between Lifting Points: 576-840 mm
Lifting Height: 1815 mm
Column Height: 2451 mm
