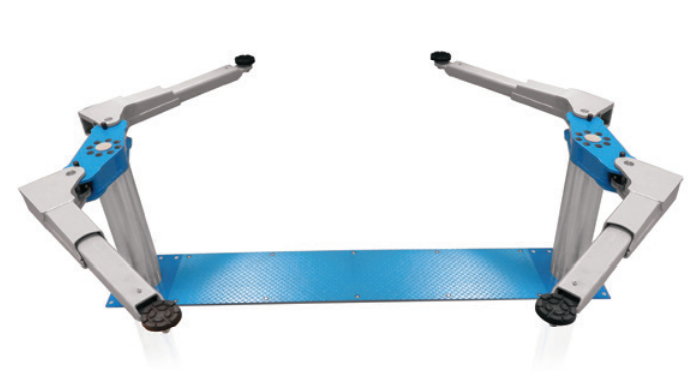

Electro-hydraulic twin cylinder in-ground lift 3,5T RAV1110LR, RAVAGLIOLI

Perfect synchronization between cylinders regardless of load distribution.
Equipped with a safety valve to prevent overloading and to ensure protection in case of hydraulic pipe fracture.
Self-controlled lowering speed for smooth operation.All mechanical, hydraulic, and electrical components are manufactured in compliance with the respective European Safety Standards.
Specifications:
Lifting Capacity: 3.5 t
Cylinder Diameter: 180 mm
Lifting Arm Length: 500–1070 mm
Lifting Height: 80–2019 mm
Distance Between Cylinders: 2160 mm
Distance Between Lifting Arms: 2340 mm
Cassette External Dimensions: 2496 x 500 x 2720 mm (depth x length x width)
