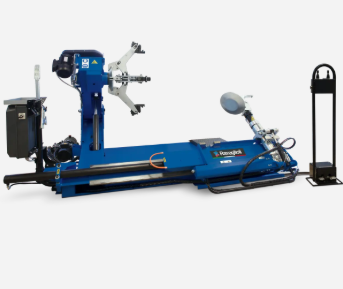

Electrohydraulic Tyre Changer, RAV.G0156.206251, RAVAGLIOLI

The Ravaglioli G10156.15 is a universal electrohydraulic tyre changer designed for servicing truck, agricultural, and earthmoving vehicle wheels. It accommodates rim diameters from 11″ to 43″ (up to 56″ with optional extensions) and a maximum rim width of 1500 mm.
Key Features:
Electrohydraulic operation with dual-speed chuck rotation (4–8 rpm).
Manual movement, lifting, and rotation of the tool via hydraulic controls on the aerial arm.
Automatic motor shut-off after 5 seconds of inactivity.
Self-braking chuck motor for immediate rotation stop.
Ideal for various truck wheels, including 19″ and 22.5″ sizes.
Internal clamping starting from 90 mm.
Technical Specifications:
Maximum wheel diameter: 2550 mm (100″).
Maximum wheel width: 1500 mm (59″).
Bead breaker force: 32,000 N.
Maximum wheel weight: 2300 kg.
Chuck rotation speed: 4–8 rpm.
Chuck motor power: 1.35–1.85 kW (3-phase, 400V, 50 Hz).
Hydraulic unit motor power: 1.85–2.5 kW (3-phase, 400V, 50 Hz).
Overall dimensions (W x D x H): 2715 x 2010 x 1950 mm.
Weight: 1020 kg.
