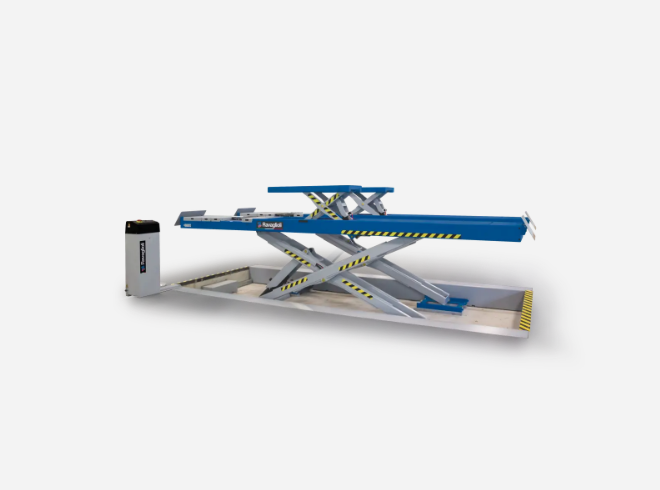

Electro-hydraulic scissor lift with play detector and wheel free lift 4,2T, 5,5m RAV640N.6.55ISI, RAV.640N6.193056, RAVAGLIOLI

One Lift – Two Solutions: The new lift geometry simplifies the installation of a flush-mounted pit. Lifts with large platforms, designed and engineered for maximum stability, even when loaded with large vehicles.
Equipped with 8+4 Play detector,wheel free lift, inground.
Technical Specifications:
Maximum lifting height: 2100 mm
Lifting time: 40 s
Lowering time: 40 s
Maximum lift height from the floor: 1805 mm
Air pressure: 280 bar
Motor power: 2.6 kW
Platform width: 650 mm
Platform length: 5500 mm
Distance between platforms: 900 mm
Capacity of wheel free lift: 4000 kg
Power supply: 230 V | 50 Hz
Total length: 5500 mm
Total width: 2200 mm
Weight: 1920 kg
Installation depth: 295 mm
