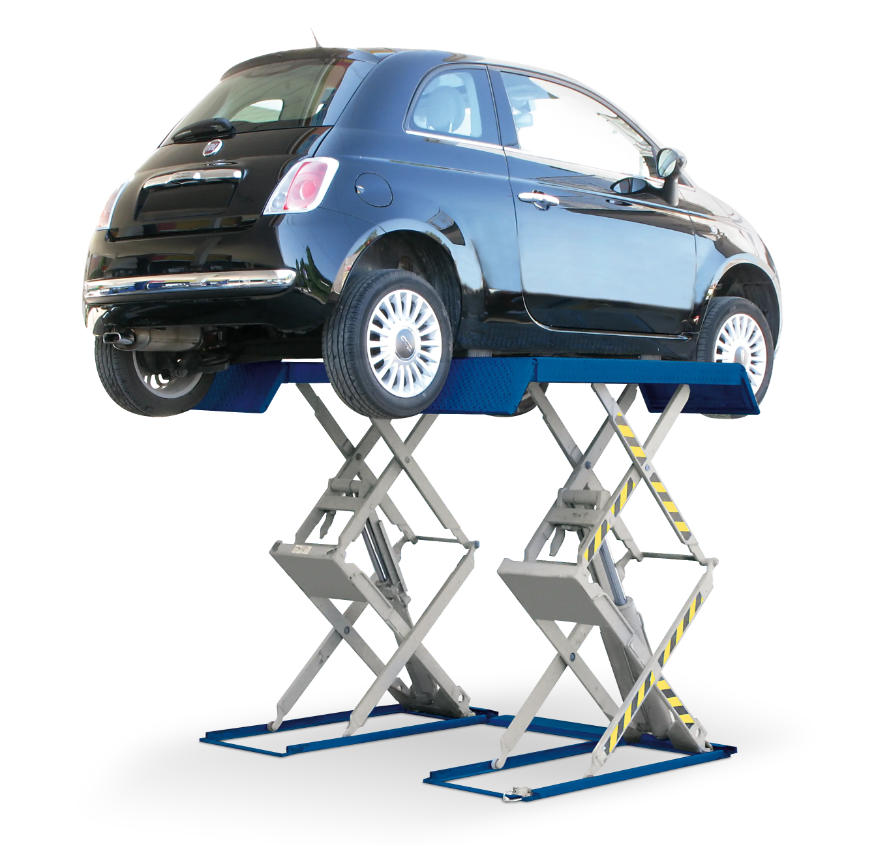

Double electro-hydraulic scissor lift, above ground installation 3,5T (Hot galvanized) RAV535, RAV.535XX.196859, RAVAGLIOLI

Extra low version (100 mm) – The lift is an ideal choice for low ground clearance vehicles. Hot galvanized. Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position
Play detector, Wheel alignment,wheel free lift-not possible.
Specifications:
Lifting Height: 1900 mm
Lifting time: 35 s
Lowering time: 30 s
Drive-on-height: 100 mm
Length of platforms: 1940 mm
Platform Width: 610 mm
Distance Between Platforms: 800 mm
Motor Power: 2.6 kW
Power supply: 230/400 V | 50 Hz
Length: 1950 mm
Width: 2020 mm
Weight: 750 kg
