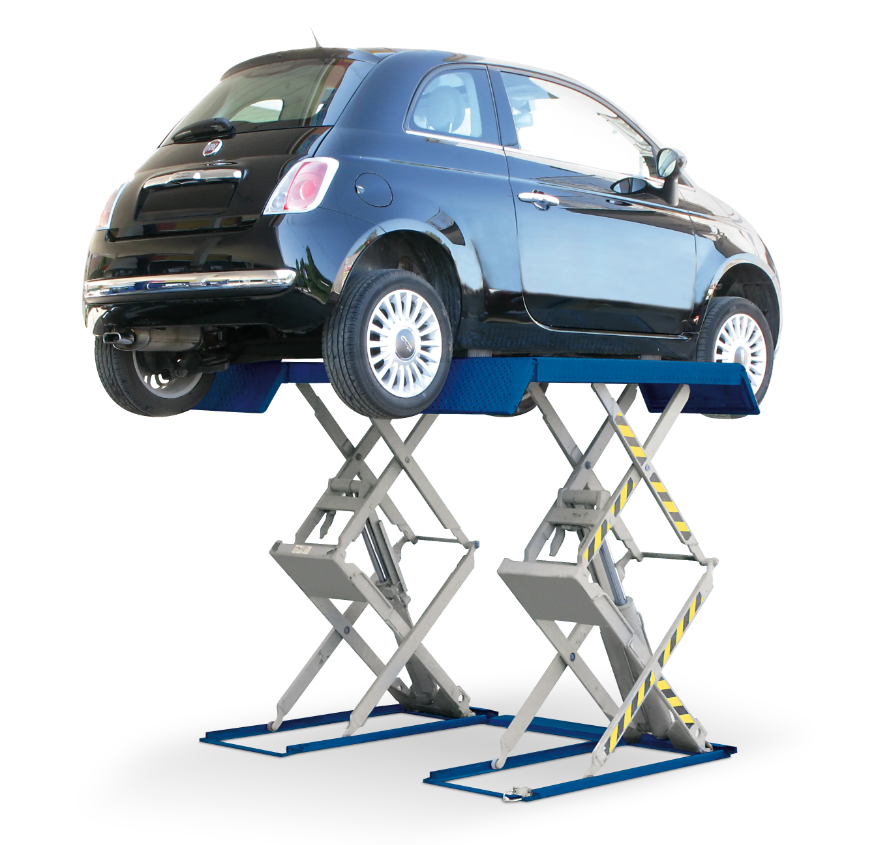

Double electro-hydraulic scissor lift, above ground installation 3,5T RAV535Q, RAV.535XX.195784, RAVAGLIOLI

Extra low version (100 mm) – The lift is an ideal choice for low ground clearance vehicles. Teq-Link.Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position.
Play detector, Wheel alignment,wheel free lift-not possible.
Specifications:
Lifting Height: 1900 mm
Lifting time: 35 s
Lowering time: 30 s
Drive-on-height: 100 mm
Length of platforms: 1940 mm
Platform Width: 610 mm
Distance Between Platforms: 800 mm
Motor Power: 2.6 kW
Power supply: 230/400 V | 50 Hz
Length: 1950 mm
Width: 2020 mm
Weight: 750 kg
