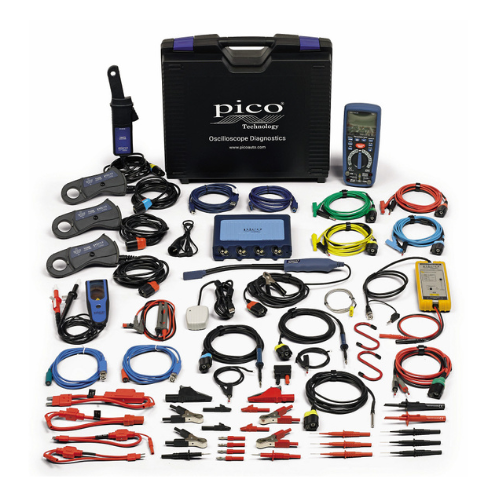

PicoScope 4425A EV diagnostic kit, PQ196, Pico Technology

Pico PQ196 EV Diagnostic Kit is a specialized PicoScope 4425A–based solution designed for diagnostics of electric, hybrid, and internal combustion vehicles. The kit is built around the 4-channel PicoScope 4425A oscilloscope module with PicoBNC+™ connectors and includes dedicated high-voltage accessories for EV diagnostics, enabling insulation, safety, and power measurements. PQ196 supports BEV, MHEV, PHEV, fuel-cell, and ICE systems, including DC-DC charging, three-phase current analysis, CP and PP charging line verification, and safe shutdown and start-up sequence testing. The kit is compatible with PicoScope Automotive and PicoDiagnostics software, which is continuously updated with no subscription fees. Short technical information: • Channels: 4 • Input ranges: ±50 mV to ±200 V • Sampling rate: up to 400 MS/s • High-voltage EV diagnostics support (up to 1000–1400 V with accessories) • Insulation and safety testing • PC connection: USB 2.0 / USB 3.0

PQ196 palaiko BEV, MHEV, PHEV, degalų elementų ir ICE sistemas, įskaitant DC–DC įkrovimą, trifazius srovės matavimus, CP ir PP įkrovimo linijų patikrą bei saugaus paleidimo ir išjungimo sekų analizę. Rinkinys suderinamas su PicoScope Automotive ir PicoDiagnostics programine įranga, kuri nuolat atnaujinama be prenumeratos mokesčių.

Trumpa techninė informacija:

• Kanalai: 4

• Įėjimo diapazonai: ±50 mV – ±200 V

• Mėginių ėmimo dažnis: iki 400 MS/s

• Aukštos įtampos EV diagnostikos palaikymas (iki 1000–1400 V su priedais)

• Izoliacijos ir saugos testai

• Jungtis su kompiuteriu: USB 2.0 / USB 3.0
