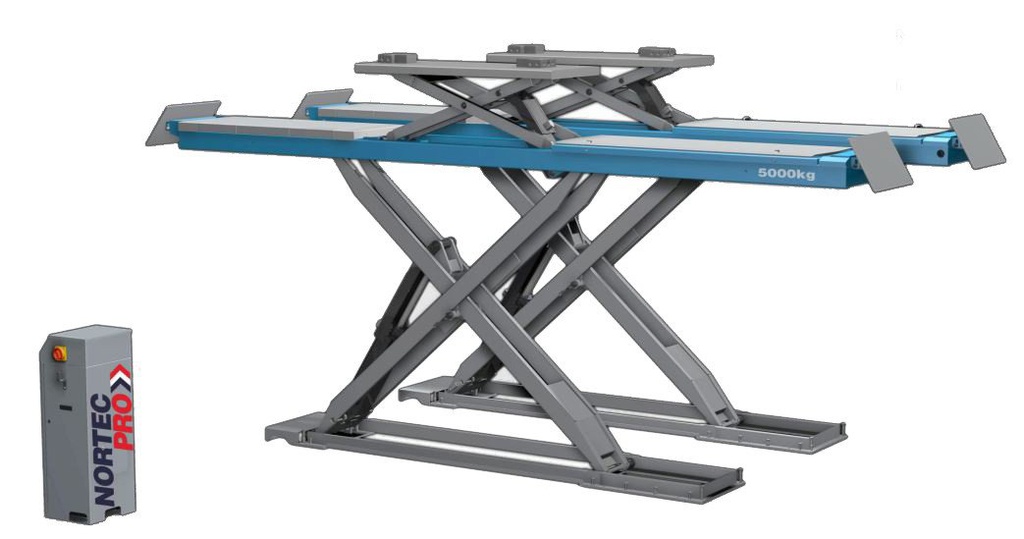

[PN500GP] Electro-hydraulic scissor lift 5T PN500GP Nortec

Lifting capacity: 5000kg:
Supply voltage: 400V/50Hz
Pneumatic pressure: 8 bar max.
Engine power: 3.5kW
Maximum lifting height: 2160 mm
Minimum height: 290mm
Platform width: 608 mm
Platform length: 5000 mm
Lift weight: 2570 kg
Package dimensions: 60x520x110 cm

- Electro-hydraulic lift for wheel alignment
- Electro-hydraulic axle lifters
- Pneumatically released locks
- Hydraulic safety device to protect against unexpected oil leakage or overload
