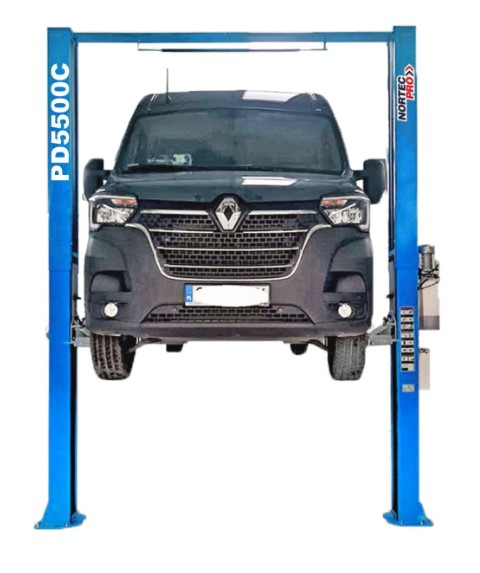

[PD5500] Elektro-hidraulinis dviejų kolonų keltuvas su komunikacijomis viršuje 5,5T PD5500C, NORTEC

TECHNICAL DATA:
LIFTING CAPACITY: 5500 kg
POWER SUPPLY: 400V/50Hz
ENGINE POWER: 3.0 kW
LIFTING HEIGHT: 1900 mm
MINIMUM HEIGHT: 100 mm
OIL PRESSURE: 18MPa
LIFTING TIME: 50 sec.
RELEASE TIME: 40 sec.
NOISE LEVEL: ≤75 dB
TECHNICAL DESCRIPTION

Type: 2 columns, electro-hydraulic
Locks: automatic (electromagnets)
Emergency lowering: YES
Blue color
Synchronization method: cable
Carrying capacity: 5500 kg
Width between columns: 3300 mm
Total width: 3980 mm
Front arms: 3 sections (890-1300-1800 mm)
Rear arms: 3 sections (890-1300-1800 mm)
Lifting height: 1900 mm
Minimum arm height: 100 mm
Lifting time: 50 sec
Drain time: 40 sec
Power: 400V
Engine power: 3.0 kW
Noise level: <75dB
