Ignition system training board MSUS01

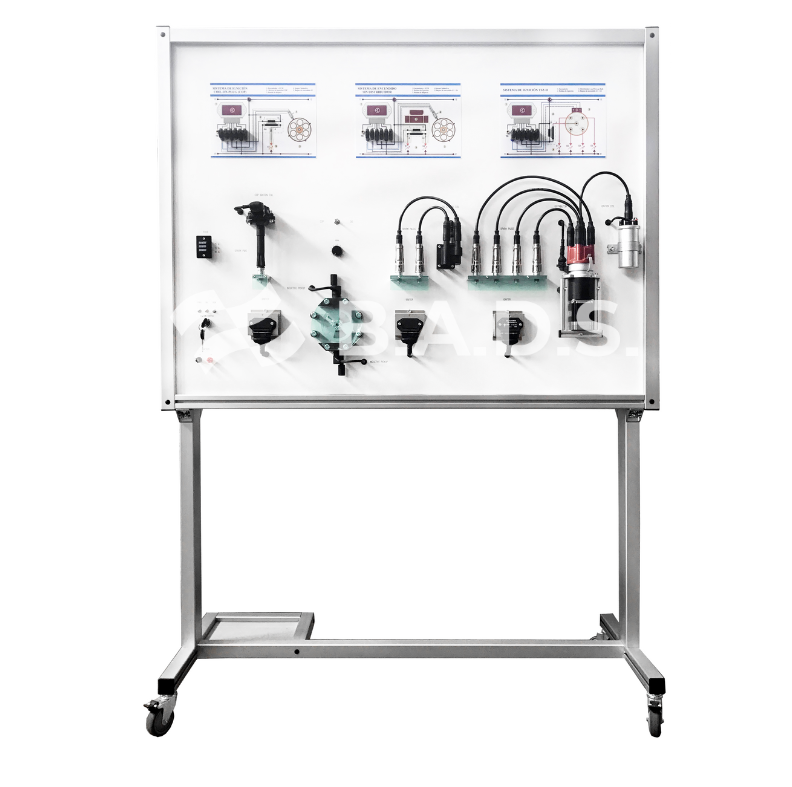

Ignition System Educational Trainer MSUS01 is a fully functional system designed for learning and understanding ignition systems in internal combustion engines. It integrates three different ignition systems: single spark ignition (DI/COP), twin spark ignition, and transistorized ignition system (TSZ-h). The trainer allows for electrical parameter measurements through open contacts, providing an in-depth analysis of system operation.
This training equipment enables observation and understanding of high-voltage components such as ignition coils, spark plugs, distributors, and sensors. The integrated electric motor with a geared rotating disc simulates crankshaft movement, allowing speed adjustments and real-time analysis of ignition system responses under different conditions.
Students can measure and analyze electrical parameters across various system components, understand the interaction between ignition coils, sensors, and distributors, and practice safe handling of high-voltage components. The trainer also facilitates fault diagnostics using open electrical contacts and 12V diagnostic connections for oscilloscopes, multimeters, or other measuring instruments.
For instructors, this trainer serves as an effective tool for demonstrating ignition system principles. Clear indicators (PWR, ON, RUN) ensure safe operation, while the compact and mobile design allows for easy integration into a classroom environment. The trainer also provides fault simulation capabilities, helping students develop troubleshooting and problem-solving skills.
The system operates on a 12V battery or can be connected to a 230V/50Hz power supply. Its robust construction ensures reliable and safe use, with built-in fuses and control switches preventing improper operation. Dimensions: 1360 x 500 x 1820 mm, weight approximately 70 kg.
