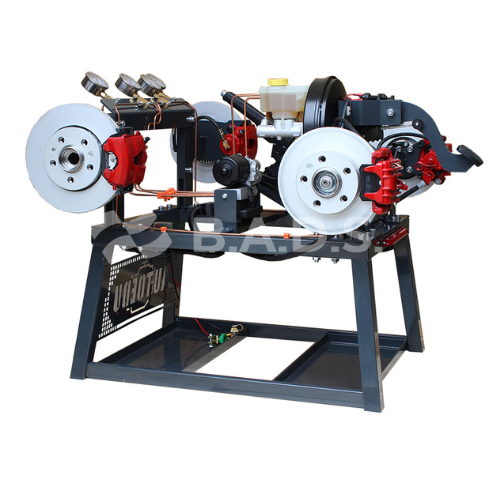

Brake rig (bench version) MSSS03

A fully functional hydraulic braking system training stand with electronic ABS, designed for practical training in vocational schools and technical colleges. The stand includes a cross-diagonal brake circuit, brake booster, front and rear disc brakes with calipers, and a functional parking brake system.
The system features:
An operational ABS system with wheel speed sensors and solenoid valves
4 pressure gauges to monitor real-time brake fluid pressure at each wheel
Integrated OBD 16-pin connector for fault reading, clearing, and parameter monitoring
Simulated braking conditions and wheel locking to observe ABS activation
Components include: brake pedal, master cylinder, vacuum booster, brake fluid reservoirs, brake light, control panel, and transport wheels
The stand is compact, robust, and mobile – easily placed on a table or workbench, making it safe and convenient for classroom use.
Dimensions: 1250 x 1000 x 750 mm
Weight: approx. 99 kg
Power supply: 12 V DC (battery not included)
