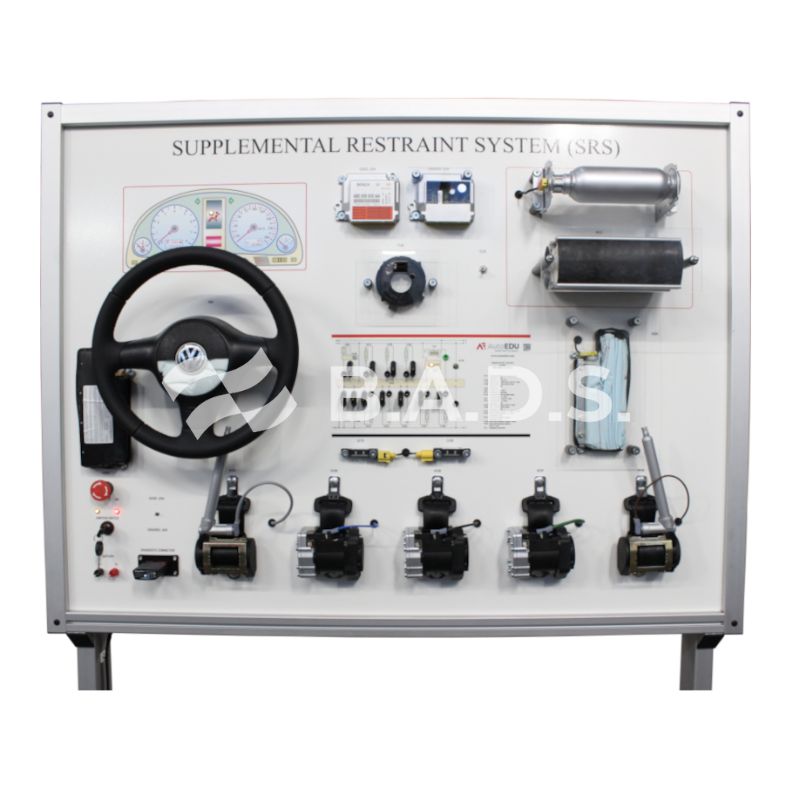

SRS Bosch AB 8.4 (Airbag) Educational Trainer MSSRS01

The SRS Airbag System Training Stand allows for the study and analysis of the operation of four airbags, crash sensors, the airbag steering wheel module, and the spiral cable. It includes a functional control unit for diagnostics and a second unit with recorded crash data for educational purposes. The system supports oscilloscope and multimeter connections for measuring electrical parameters and enables comprehensive diagnostics via the OBD 16-pin connector.

The banana plug jumper system allows for measurements and the simulation of over 10 different faults, enhancing practical troubleshooting skills. The cutaway structure of the passenger airbag and control unit provides a visual understanding of component functionality.

For instructors, the stand ensures a safe and structured learning environment with inactive airbag igniters and internal wiring. Its mobile and compact design saves space and allows multiple students to work simultaneously. The stand is easy to set up and requires no additional assembly.

Dimensions: 1820 x 1360 x 500 mm. Weight: ~60 kg. Power supply: 12V battery (not included)
