Truck trailer WABCO EBS D 2S/2M braking system Educational Trainer MSPPS-EBS-D

Fully functional WABCO EBS system
Functional pneumatic braking system
Diagnosis through OBD 16-pin diagnostic socket
Driving simulation
6 measuring gauges
Fault simulation

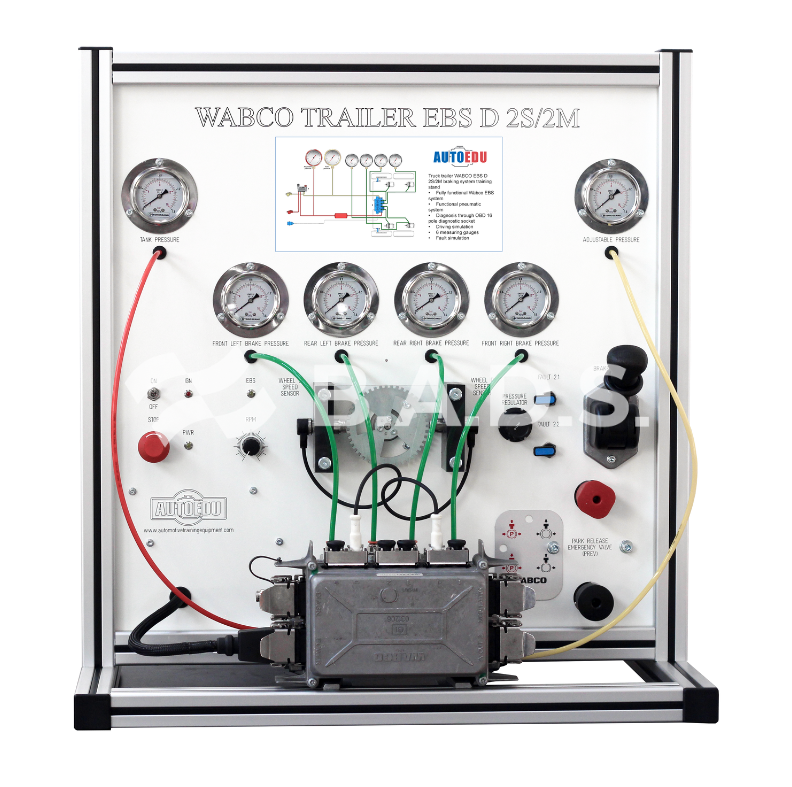

The training stand features a fully functional truck trailer pneumatic braking system with WABCO EBS D 2S/2M, installed in an aluminum frame. It is designed to demonstrate a pneumatic braking system with an electronic EBS system using original WABCO components.

An excellent educational tool for students to learn the structure of the braking system, study its components, and perform measurements, tests, and diagnostic procedures. Suitable for technical and vocational training.

Can be used as a visual educational aid for mechanical students, as well as for brake system repair and service training.

Features:

WABCO EBS modulator, pneumatic system, and ABS sensors
Monitoring of brake circuit pressure for each wheel
Driving mode and wheel blocking (slipping) simulation
Diagnosis via ISO-type connector: fault reading/clearing, parameter display, reprogramming
Integrated emergency stop button
220V power supply, internal 24V
CE certified
Made in Lithuania
