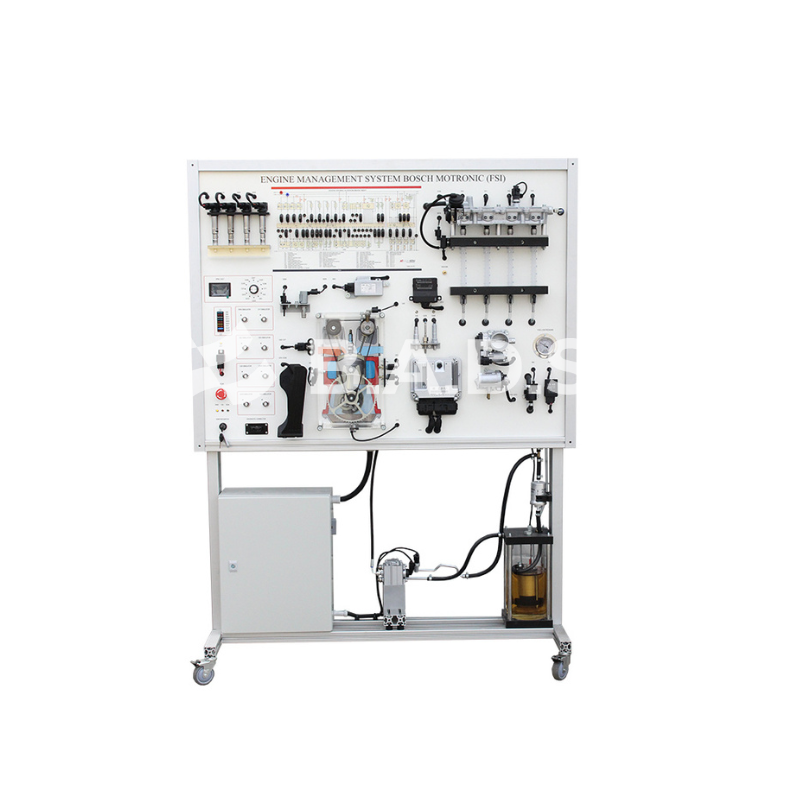

Engine Management System Bosch Motronic (FSI) Educational Trainer MSFSI02

Engine Management System Educational Trainer Bosch Motronic (FSI)
This training stand provides hands-on learning of modern automotive engine management systems, demonstrating the operation of direct fuel injection (FSI). Integrated OEM components allow real-time analysis of fuel supply, ignition, and exhaust systems, as well as their interaction.
Features:
The stand includes high and low-pressure fuel supply systems, an ignition circuit, and a complete electrical wiring diagram, enabling analysis of injection and ignition parameters. It allows the simulation of more than 20 system faults, measurement of fuel injection quantity, injector performance, and electrical signals.
Benefits for Students:
Students can learn diagnostics in real-world conditions, monitor sensor and control unit data, measure electrical parameters, and perform fault code analysis using the OBD II connector.
Benefits for Instructors:
A convenient, compact, and mobile stand, ideal for interactive training. Enables practical demonstrations of engine synchronization, fault diagnostics, and parameter adjustments, enhancing the learning process.
Technical Specifications:
Dimensions: 1820 x 1360 x 500 mm
Weight: approx. 105 kg
Power Supply: 230 V / 110 V (US version)
