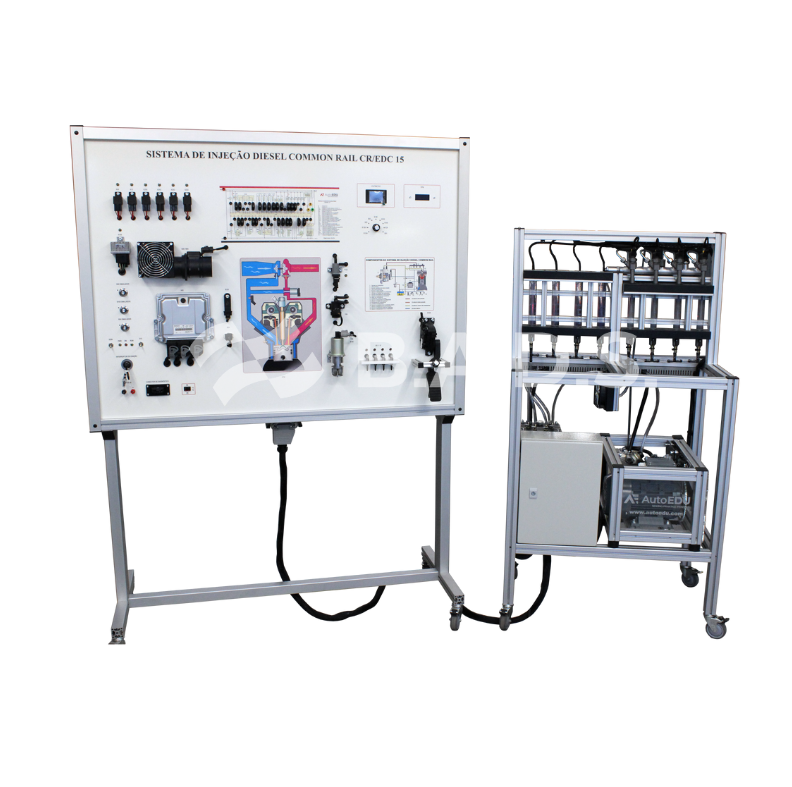

Diesel engine control system CR/EDC 15 Educational Trainer MSCR01

Common Rail Training Stand with Bosch EDC 15C3-4.1 Engine Control System
A high-precision educational tool designed for comprehensive training in diesel injection systems. Mounted on a mobile aluminum frame, the stand utilizes OEM components and the Bosch EDC 15C3-4.1 system, allowing for hands-on analysis of direct fuel injection operation.
Features:
The stand consists of electronic and mechanical sections, including the ECU, sensors, actuators, high-pressure fuel pump, injectors, and measuring cylinders. Integrated adjustable simulators allow the simulation of air flow, temperature, and pressure variations, while the OBD 16-pin connector enables ECU diagnostics, fault code reading, and system parameter monitoring.
Benefits for Students:
Provides hands-on experience in real-world diagnostics, allowing students to measure fuel injection and pressure parameters, simulate more than 20 system faults, and observe their impact on engine management.
Benefits for Instructors:
An interactive and safe training tool that effectively demonstrates the operation of diesel engine components. Its compact and mobile design saves space and promotes practical training for multiple students simultaneously.
Technical Specifications:
Electronic Part (Stand): 1820 x 1360 x 500 mm
Mechanical Part (Trolley): 1500 x 800 x 500 mm
Weight: approx. 135 kg
Power Supply: 220/12 V (US 110 V)
