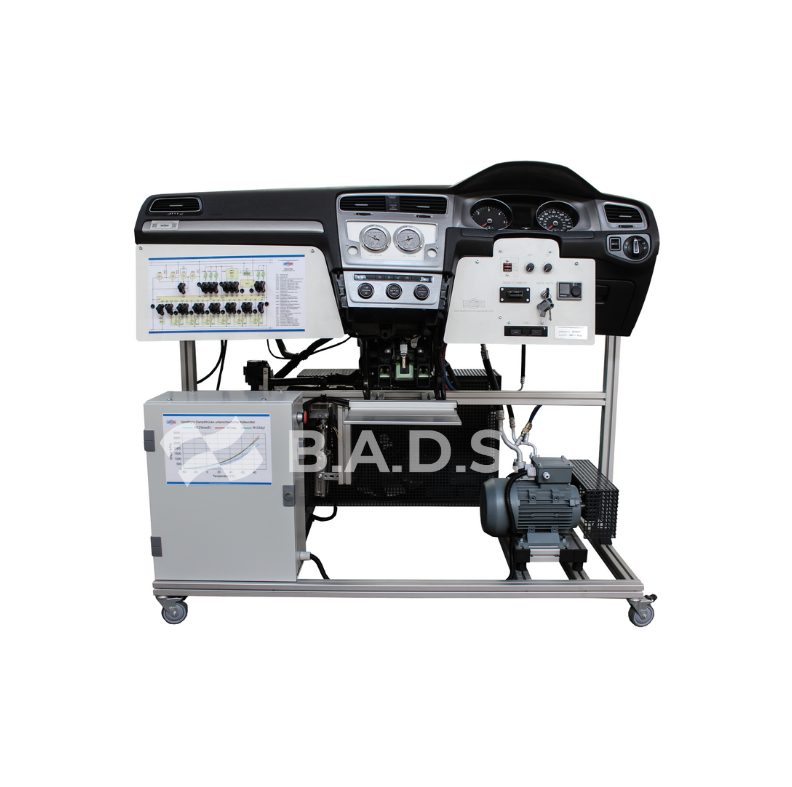

Dual-zone Air conditioning and climate control educational Trainer with R 1234yf GAS MSC04-R1234YF-B

A fully functional dual-zone air conditioning and climate control educational trainer with R1234yf refrigerant and an auxiliary petrol or diesel heating unit. Built with Audi/VW OEM components, this trainer helps students understand the electronics, mechanics, and operation principles of modern climate control systems. Diagnostics is performed via an OBD 16-pin connector, and fault simulation allows testing of over 15 different system faults.
Features:
Electronic 2C Climatronic system with heating and air conditioning.
Visible HVAC compressor, operating modes, and mixing unit.
Integrated pressure gauges for monitoring R1234yf refrigerant pressure in high and low circuits.
Visible airflow flaps, allowing real-time observation of movement.
Ability to monitor and adjust fan speed, flap positions, cabin temperature, and refrigerant pressure variations.
Fault simulation – simulate over 15 system faults using banana plug jumpers.
OBD diagnostics: ECU identification, reading/clearing fault codes, actuator testing.
Integrated auxiliary heating unit (petrol or diesel on request) to simulate real-world heating conditions.
Complete electrical wiring diagram with integrated measurement points.
Mobile aluminum frame design, ideal for educational environments.
Technical Specifications:
Power Supply: 220V
Dimensions: 124 x 142 x 70 cm
Weight: ~130 kg
Made in Lithuania
