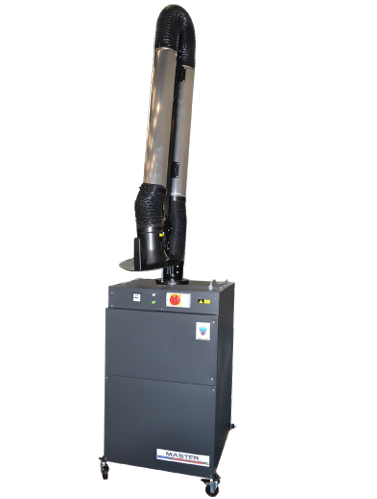

Mobile Welding Fume Extraction Unit MASTER-NG-200 FILCAR

The MASTER-NG-200 is a trolley-mounted extraction and filtration unit for welding fumes. Equipped with a 3-meter articulated arm and capture hood, the unit uses a multi-stage mechanical filtration system, including a metal pre-filter, synthetic filter, high-efficiency filter, and a 16 kg activated carbon filter for odor control. It’s designed for high-demand workshop environments.
Technical Specifications:
Specification	Value
Airflow	2,000 m³/h (1176 c.f.m.)
Filtration efficiency	95%
Filter stages	Metal pre-filter, synthetic filter, optional HEPA, 16 kg activated carbon
Power supply	400 V – 50 Hz – 3-phase (3P+T)
Motor power	2.2 kW (3 HP)
Noise level	~74 dB(A)
Weight	148 kg
Certification	CE
Extraction arm	3 m length, with hood
Mobility	4 wheels (2 lockable)
