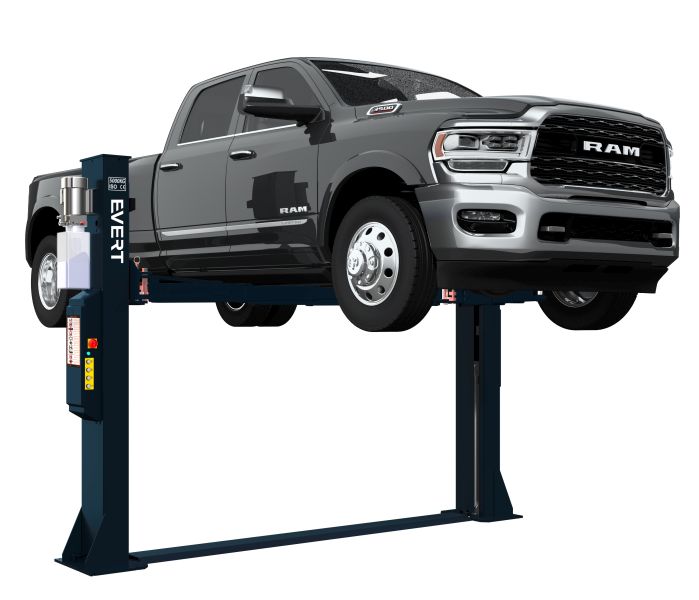

5 ton 2-post lift EVERT EVERT62B-50TE

Lift 2-column 62B-50TE symmetrical, lifting capacity 5000kg, drive electro-hydraulic, voltage 400V, full height: 2835, automatic locks, column synchronization: bottom, APS system.


Two-column electro-hydraulic hoist EVERT62B-50TE with APS function



EVERT 62 series, new generation two-column lifts are equipped with advanced APS technology , which provides the advantages of an electro-mechanical lift - precise height adjustment. The lift can be lowered from the same position as the lifted car. It is extremely convenient for changing or repairing the engine, gearboxes. EVERT 62B-50TE Lift with synchronization from below, for workshops or garages with low ceilings. The advantage is unlimited lifting of high vehicles.



MAIN ADVANTAGES:

Maximum load capacity: 5000 kg.
APS (Accurate Parking System) - precise height adjustment system.
Maximum lifting height even up to 2000 mm with standard SUV adapters EVERTZL612013002 .
Screw-out support soles, less than 100 mm from the pavement.
Universal three-stage lifting supports will allow to service both short and long base cars.
Symmetrical arrangement of columns for greater stability when lifting heavy, long-wheelbase cars.
Durable cylinders with safety valves in each column.
The lifting supports are fixed when raising the car and automatically release when lowering.
Aluminum motor housing ensures good cooling and durability.
The protective curtain reliably protects the mechanisms from dust and dirt.
High-quality powder coating, protecting against environmental effects, rusting, oxidation.
Door protection on the column to protect the door from damage when getting in and out.
Constant hydraulic system pressure to prevent overload.
The box of the control unit is sealed with a rubber gasket.
115% dynamic and 150% static load tests were performed.
CE certificate.


Technical parameters:



Electromagnetic latches
The maximum lifting weight is 5,000 kg
Front and rear three-stage supports - 900-1,800 mm
Max. lifting height – 1,900 mm (up to 2,000 mm with SUV adapters)
The minimum lifting height is 100 mm
The height of the column is 2,835 mm
The total width is 4,028 mm
The width of the passage is 3,006 mm
Lifting time - 60 s
Engine power - 2.2 kW
Voltage - 400 V
Weight - 940 kg
The lift is suitable for cars with an extended base, for example: MB Maxi Sprinter, VW LT, etc.
