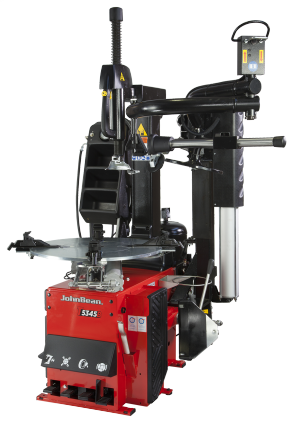

[EEWH572AE8] T5345 2S PLUS Tire Fitting Machine [EEWH572AE8]

M/D tool technology M/D tool and bead lever
Tower technology Pneumatic tilt back
Clamping system Rotary table and clamping jaws
Tool vertical position guide
Jaw type Adjustable - sliding
Rim diameter 10"-24"
Outside mounting range 10"-24"
Internal mounting range 12"-24"
Maximum wheel width 330 mm
Max. Wheel diameter 1000 mm
Breaking force 12 kN
Rotation speed CW 7 - 18 rpm. CCW 7 rpm
Speed ​​control PROspeed
Bead seats - Inflatable top side no
Toolbox Standard
Easymont pro Standard
Wheel lift Optional
capacity 70 kg
Power supply 230 VAC 1ph 50/60 Hz
Power supply (in amperes) 16 A
Installed motor power 0.9 kW
Dimensions LxWxH 1900 x 1600 x 1850 mm
Net weight 310 kg
