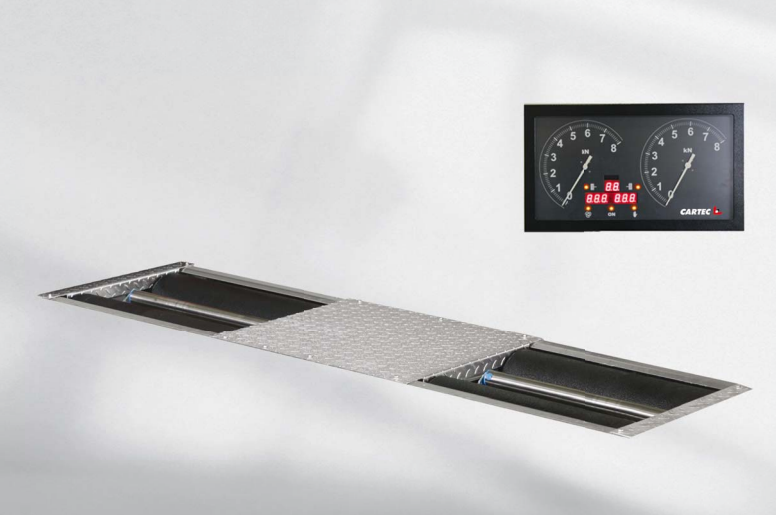

Roller brake tester for cars and vans BDE 204 K SmG 1000 Cartec

Advantages:
SmoothGrip rollers designed for spiked tires, and metal rollers. (Rollers can be replaced with Composite rollers for non-spiked tires, featuring a special corundum coating). Soft-start module to reduce electricity consumption during motor startup. Integrated axle load weighing system.Heating system for outdoor display installation. Analog display.
Technical Data:
Maximum axle weight: 4000 kg
Measuring range: 0–8000 N
Maximum braking force: 6000 N
Test weight per axle according to ISO 21069 (70% braking efficiency): 1750 kg
Idling speed: 5.4 km/h
Roller coefficient (dry/wet): > 0.7 / > 0.6
Motor power: 2 x 3.7 kW
Roller diameter: 216 mm
Roller length: 1000 mm
Roller height: level
Test width (min. – max.): 800–2200 mm
Roller set dimensions with side covers: 670 x 2350 (or 2950) x 255 mm
Power supply: 3/N/PE 400 V AC
