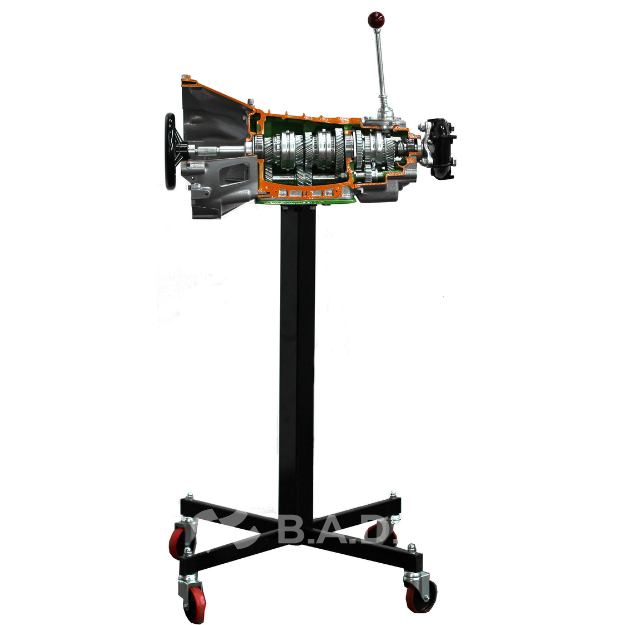

Gearbox Cutaway model Educational Trainer AE410990M

5-Speed Manual Transmission Cutaway Model – Educational Trainer
A comprehensive training unit demonstrating a 5-speed manual transmission with reverse gear. The model provides a clear view of gears, shafts, and synchronizers. The entire system is mounted on a mobile base, making it ideal for use in classrooms or workshops.
Value for Students:
Clearly visible internal components: gears, shafts, synchronizers, and bearings.
Manual gear shifting allows students to observe how gears engage and disengage.
Practical understanding of manual transmission operation: gear ratios, the function of synchronizers, and the interaction of key components.
Mobile setup enables easy relocation and group training.
Value for Instructors:
The cutaway design clearly demonstrates the principles of manual transmission operation.
OEM components ensure realistic and safe learning.
Manual rotation function enables practical demonstration of gear changes.
Easy to integrate into various educational environments due to its mobility.
Main Features:
Original 5-speed gearbox with reverse gear
Cutaway design reveals all internal components
Gear shifting via handwheel
Mounted on wheels for easy mobility
Technical Specifications:
Dimensions: 800 x 600 x 1200 mm
Weight: approx. 50 kg
