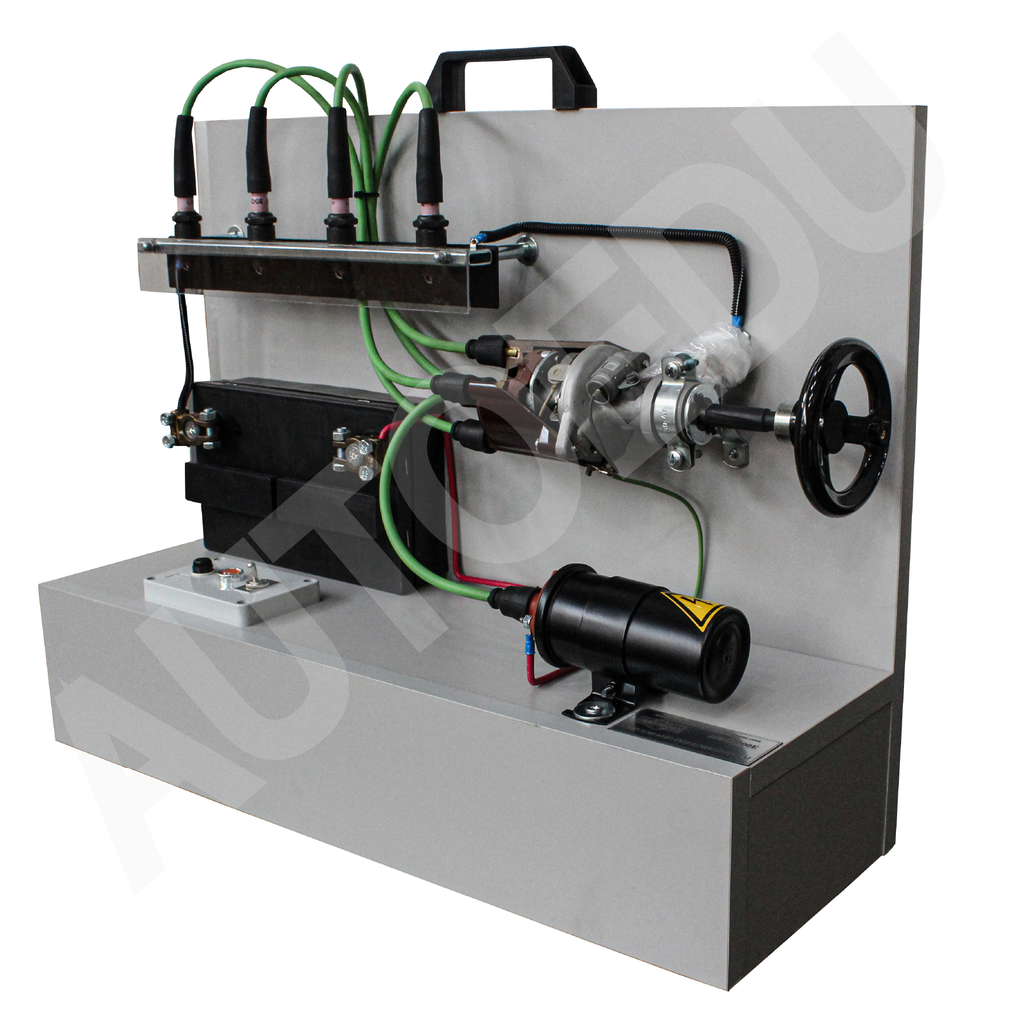

Electronic ignition system Educational Trainer AE410010

Educational trainer designed to demonstrate the operation of a breakerless ignition system for a four-cylinder, four-stroke engine. Uses OEM components such as spark plugs, ignition coil, distributor, and wiring. A magnetic pulser integrated in the distributor controls coil current conduction. Manually operated, the system maintains constant spark energy even at low battery voltage.
Dimensions: 700 x 250 x 550 mm
Weight: ~10 kg
Spark parameters: risetime – 45 µs, duration – 2 ms, voltage – 28 kV
