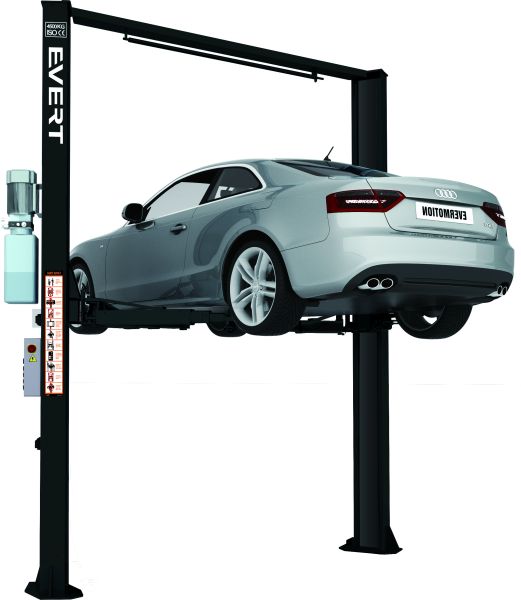

2-post lift 6214EKZ EVERT 4T

Two-column electrohydraulic asymmetric lift EVERT 6214EKZ with APS function



Advantages:

"Clean floor" design - for comfortable work and unobstructed movement of equipment under the raised car
With APS technology, there is no need to lift the car to release the safety locks. It is especially suitable for repairing engines and gearboxes.
Roof protection sensor - when touching the roof of the car, lifting is automatically stopped.
Asymmetric columns - turned at an angle of 30 degrees for full opening of car doors.
The design of the three-stage jack stands allows for the lifting of a wide range of vehicles from the Smart to the Sprinter minivan.
Control on one side.
Powder coating (Extremely resistant to cracking, scratching, splitting, fading, protects the surface from rust)
Aluminum motor construction to protect against overheating.
24V control system.
24V roof limit switch.
Manual release switch for emergency lowering.
Door protection
Adjustable (screw-on) lifting pads
4 pcs. adapters for minibuses
Has 115% dynamic and 150% static load tests.
Color RAL 7021


Technical parameters:

Electromagnetic latches
Asymmetrical
The maximum lifting weight is 4000 kg
Front three-stage supports - 605 - 1100 mm
Rear supports of three stages - 850 - 1500 mm
Lifting height - 100-1970 mm (up to 2070 mm with SUV adapters)
Column height - 3900 mm
Width - 3690 mm
The width of the passage is 2500 mm
Lifting time - 55 s
Engine power - 2.2 kW
Voltage - 400 V
Weight - 765 kg
