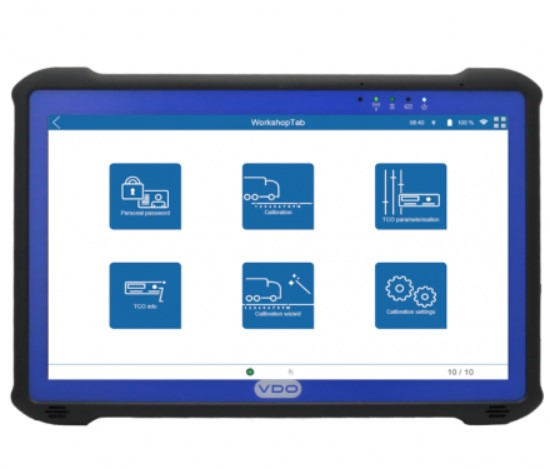

[2910002727600] WorkshopTab II Basic, 2910002727600, VDO

Power supply:
Internal battery:
AC adapter: 100 to 240 VAC, approx. 2.0 A;
DC adapter: 11 to 16 VDC / 22 to 24 VDC, approx. 6.1 A;
Operating temperature: –10 to +50 °C;
Storage temperature: –20 to +70 °C;
Humidity: max. 90% (non-condensing);
Protection class: WorkshopTab - IP54, WorkshopLink - IP40, BlueMeter (light barrier) - IP54, TyreMeterPro - IP54;
Dimensions:
WorkshopTab - 300.67x201.97x22.5 mm, WorkshopLink - approx. 58x34x14 mm, BlueMeter (light barrier) - approx. 98x66x35 mm;
Weight:
WorkshopTab - 1,450 g, WorkshopLink - 15 g, BlueMeter (light barrier) - 185 g (incl. suction base);
Display: 295 mm (11.6˝ ) diagonal, 1,920x1,080 pixels, 16.7 million colors;
Keyboard: virtual keyboard, context-sensitive;
Interfaces: Bluetooth®, WLAN b, g, n (IEEE 802-11), K-Line (KWP2000);

Measuring range constant “w” with WorkshopLink and BlueMeter: 2,000 to 50,000 Imp/km;
Control “v”: 20 to 200 km/h;
Measuring range/ accuracy clock: +/– 120 s/24 h;
Measuring range for road measurement: 20 m;
Test speed for “w” measurement on the road: 3 to 20 km/h;

Roller interface module

Power supply: 100 to 240 VAC, +/– 10%, 50/60 Hz;
Overvoltage category: II;
Current consumption: max. 1 A;
Operating temperature: –10 to +40 °C;
Storage temperature: –20 to +70 °C;
Rel. humidity: max. 80% (non-condensing);
Protection class: IP54;
Degree of contamination: II;
Dimensions: 200x180x95 mm;
Weight: 1.5 kg;
Switching output for lifting beam/brake: AC contact, supply voltage, contact load 0.6 A fused via device fuse;
Connections:
Voltage output for sensor supply,
Roller pulse encoder,
Light barrier
2 VDC +/– 15%, 1 A short-circuit-proof 0.2 to 5.0 cm/Imp (NPN or push-pull) for wheel circumference measurement (NPN or push-pull)
Correction value setting: automatic or +/– 9.9% in steps of 0.1%
Measuring range constant “w”: 2,000 to 50,000 Imp/km;
Measuring range constant “L”: 300 to 7,200 mm;
Test speed for “w” and “L” measurement: 1 to 60 km/h;
Measuring distance for roller measurement: 200 m double roller set and roller set, compact 20 m brake tester;
Distance counter test: 100 to 10,000 m;
