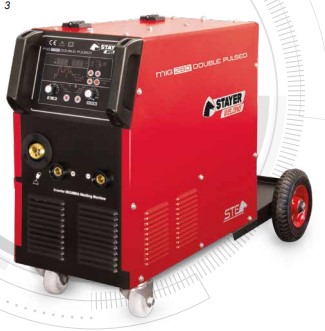

Suvirinimo aparatas MIG - MAG SYNERGIC DOUBLE PULSE STAYER 1.2401
STAYER MIG 165 MULTI
Product advantages
• STAYER MIG MULTI range, with connection for EUROTORCH torch and with power of 160-170 amps.
• Designed for MIG, TIG and MMA processes of the highest quality.
• Easy setup in MIG mode, possibility to use gas or hollow wire without gas.
• With gas, connect torch return to positive terminal (+).
• Hollow wire without gas, connect torch return to negative terminal (-).
• Efficient and simple wire welding adjustment of only two buttons: one for control including speed mode and one for voltage. A switch enables the change of the wire work mode (MIG) and electrode mode (MMA) and TIG.
• Protection against over temperature and over currents.
• Very complete equipment including torches, sheave, ground cables and electrode holder
• IGBT technology based on state-of-the-art microprocessor control capable of providing up to 170 amps (MIG 170).
• Transportable and robust: Compact, low weight due to the use of fully inverter power circuitry. Oversized and quality components.
• MIG 160 for coils from 0.5 to 1Kg.
• MIG165 / 170 is for coils from 0.5 to 5Kg.
• Prepared for use with a stabilized generator, given its voltage input range of +/-17%.
• Equipment designed and manufactured in accordance with European regulations 2014/35/EU, 2014/30/EU and 2011/65/EU, which guarantee a solid construction and safety of use.
Standard equipment • Main input cable / 2m x 2.5mm². • Ground clamp & cable / 1.5m x 16mm². • Electrode clamp & cable / Cobre puro. 2.5m x 16mm². • Internal coil winder for 0.5 up to 5kg. • 15AK / 3m MIG torch.
Data Sheet MIG 165 MULTI • Current 160 A • Voltage 230 V
• Duty Cycle 60 % • Coated Electrodes 1.6 – 4.0 mm • Thread thickness 0.6 – 0.8 – 0.9 mm • Coil weight 0.5 – 1 – 5 kg • Generator 5 – 7 KVA / 230V ±17% • Dimensions 42 x 31 x 18 cm
• Weight 13 kg • Borna connector 3/8” (10 – 25) ø
• Power cord 2m x 2.5 mm² • Cable + ground clamp 1.5m x 16 mm²
• Cable + electrode clamp2.5m – 16 mm² • MIG torch 15 AK
• Contact tip included 1.0 • Sheaves included 0.8 – 1.0
