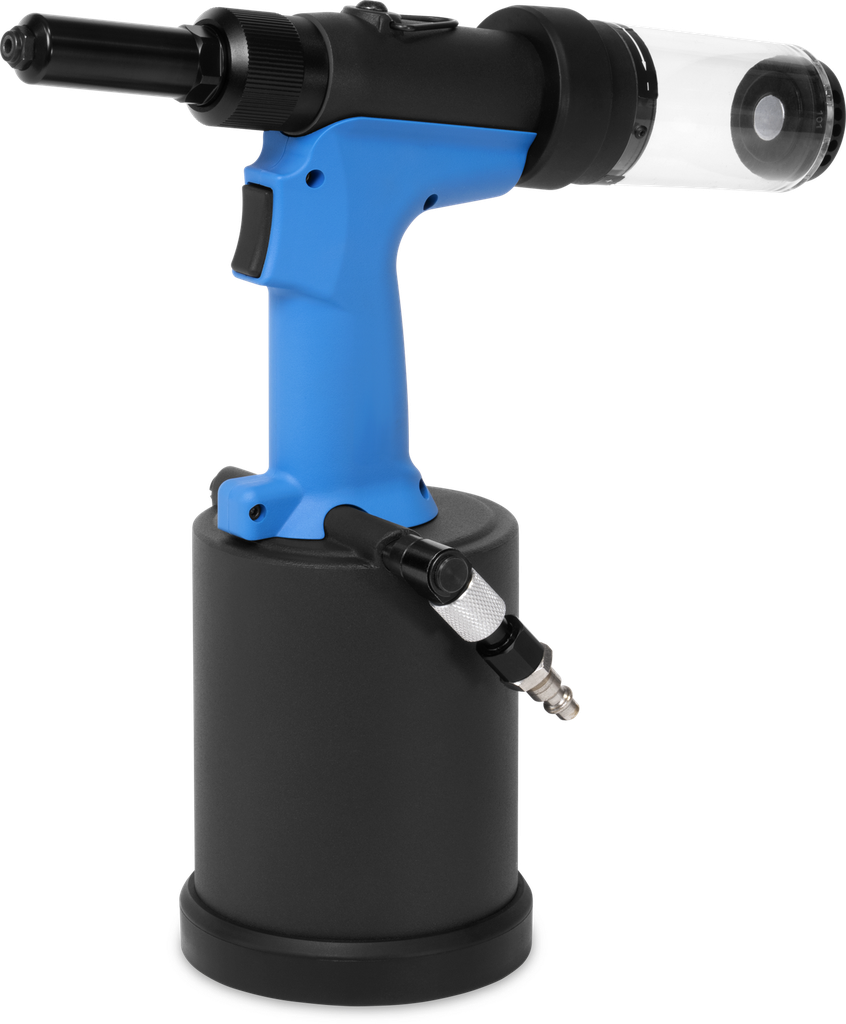

HR90 HYDROPNEUMATIC RIVETER (089976, GYS)

HR 90 hydropneumatic riveter, designed for Ø 3.2 to 4.8 mm structural rivets, offering a pulling force of 18,500 N and incorporating an automatic rod suction system. FEATURES - For setting Ø 3.2mm to 4.8mm rivets. - Ergonomic grip thanks to handle. - Maintenance-free. - Supplied with a nozzle for Ø 6.40mm rivets and a nozzle for Ø 3.2mm rivets. - Features a rod collector at the rear thanks to its reservoir. Suction max Ø 3.3 Ø 3.2/4.8 Rivet size The nozzle orifice Min. air pressure Max. air pressure Working force 5 bar 7 bar 9230 N Stroke Ød For POP rivets Ø 3.2 mm Ø 4.0 mm Ø 4.8 mm ØD COMPATIBLE RIVETS Ø 2.2+0.10 mm Ø 2.7+0.10 mm Ø 3.3+0.10 mm  Max. power (6 bar) 0/6,5mm 16900-23670N
