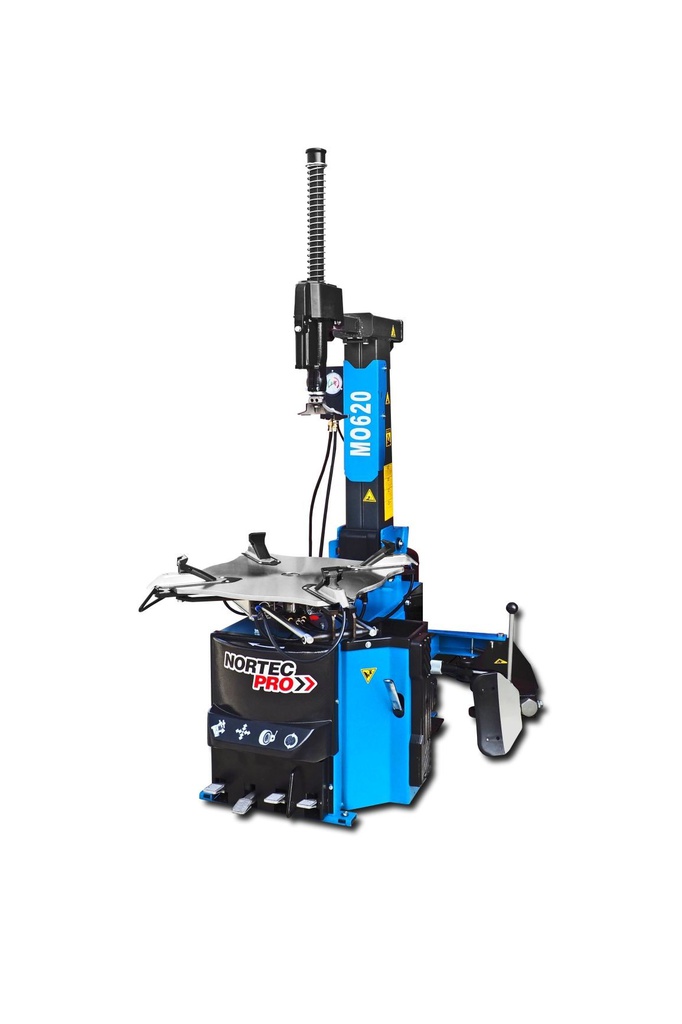

Automatic tire mounting machine, MO620N, NORTEC

Automatic tire mounting machine for passenger cars with pneumatically tilting main column and pneumatically locking head position. The double speed of the table is activated by a foot pedal. It has a metal box with a manometer. There is an option to use an automatic head.

Power supply: 400V;
Engine power: 1.1 kW
Max. torque: 1200 Nm;
Table rotation speed: 6 - 12 rpm;
Air supply: 8 - 12 bar;
Pump limiter: up to 3.5 bar with adjustment;
Integrated inflation: available;
External mounting: 10" - 24";
Internal mounting: 12" - 26";
Edge presser: 3000 kg;
Max. wheel diameter: 1200 mm (47");
Max. wheel width: 350 mm (15");
Noise level: <70 dB
Weight: 300 kg;

KIT:
Tire fitting machines
Inflator
Mounting spoon cover x2
Sturdy collecting spoon
Brushes
Metal clock with manometer
Overlay of mounting table clamps 8 pcs. x2
Dryer and oil with pressure gauge
Mounting foot cover x40
Edge presser pad 2 pcs. x2

The machine can be equipped with an auxiliary arm AL2XL.
