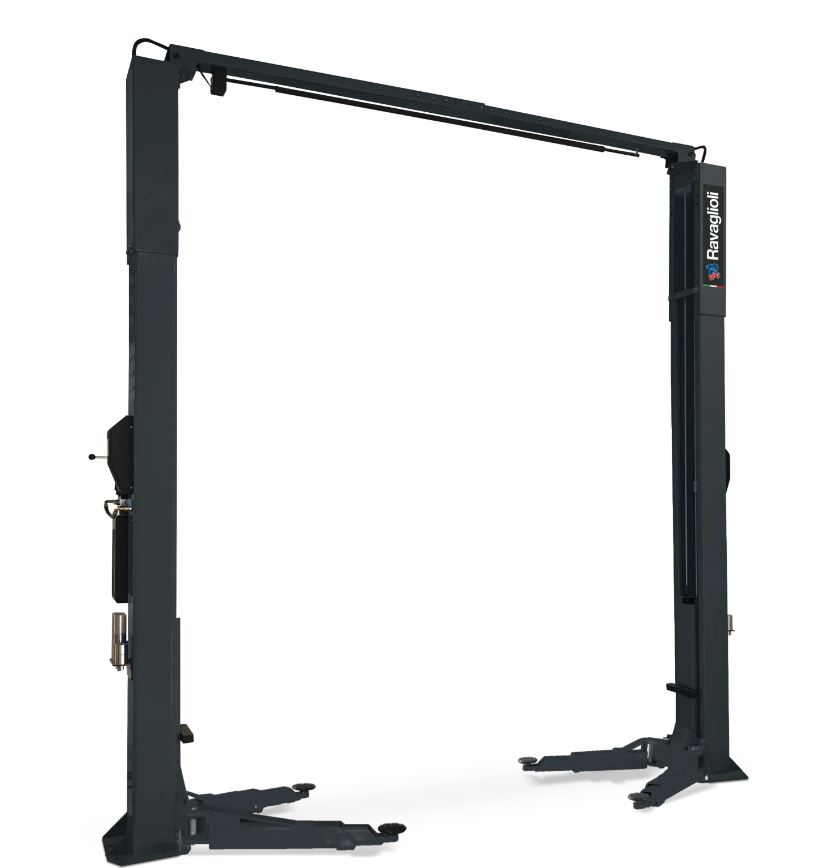

Electro-hydraulic two-post lift, 4.0 T, KPH350.40, KPH-40ECGA RAVAGLIOLI

Electrohydraulic 2-post lift without base, with asymmetric arms and symmetric posts that enable an easy access to the pick-up points of the vehicle.
Technical specifications:
Maximum lifting height: 1863|1928mm (with extensions)
Lifting time: 54 s
Adjustable lifting pad height: 100 - 136 mm
Drive-through width: 2506 mm
Required minimum ceiling height: 3850 mm
Arm configuration: asymmetrical
Front lifting arm length: 715 - 1051 mm
Rear lifting arm length: 775- 1138 mm
Motor power: 2x2,2 kW
Lift width: 3334 mm
Lift height: 4000 mm
Power supply: 400/3/50Hz
Weight: 725kg
Included:
top limit switch
65mm pads extensions
